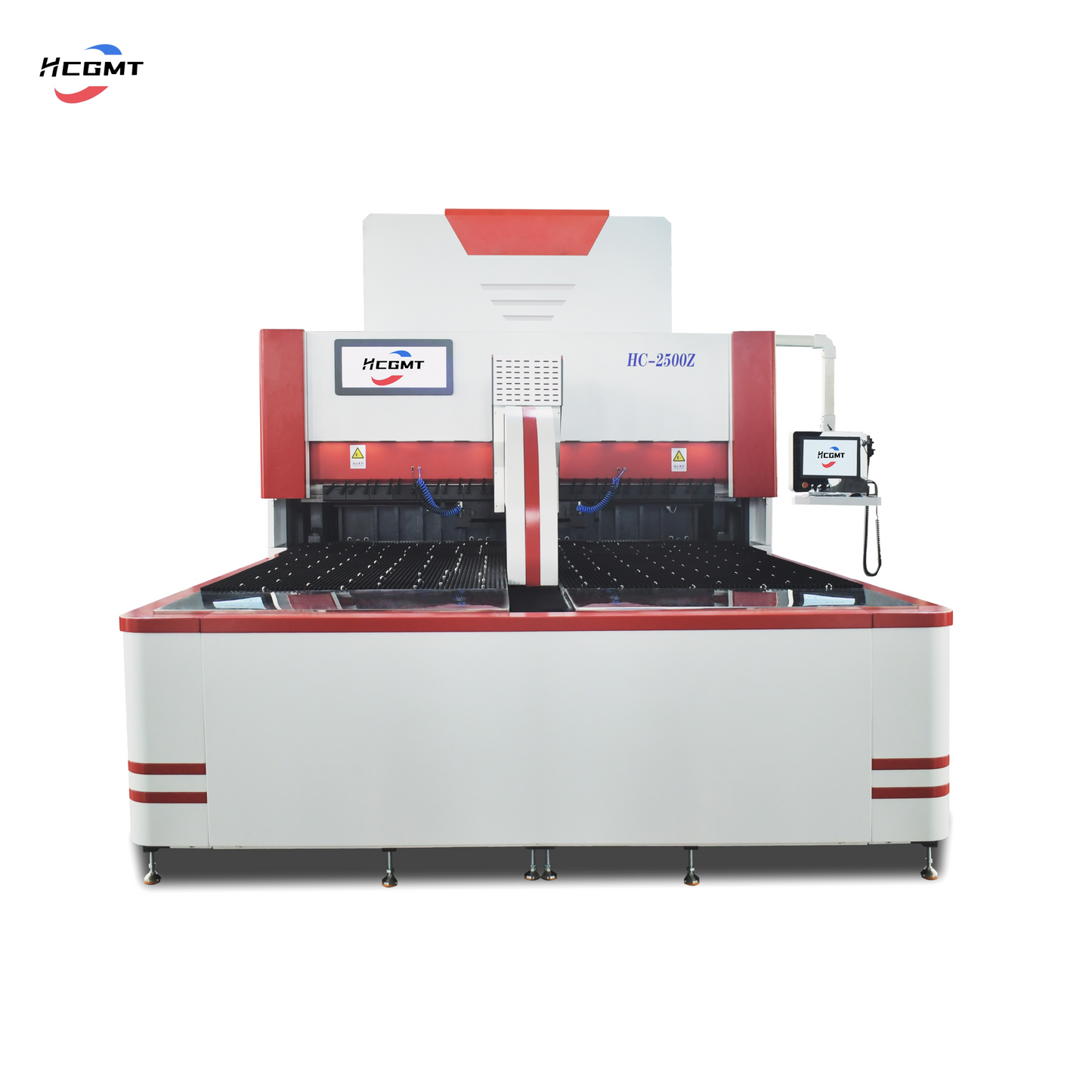

HCGMT® 2500 CNC Intelligent Flexible Automatic Sheet Metal Bending Machine

CNC Intelligent Flexible Bending center is a high-end bending machine that integrates advanced numerical control technology with intelligent sensors and controllers to achieve fully automated and efficient bending operations. The machine is designed to meet the precision bending requirements of a wide range of large-scale parts, making it a versatile solution for a diverse array of manufacturing applications.

The operational process of the CNC Intelligent Flexible High-Speed Bending Center consists of the following components:

Machine body: Constructed with high-strength and highly rigid cast  iron, it has high stability and load-bearing capacity, capable of  meeting the bending requirements of various large-scale parts.

Workbench: Employing a high-precision and highly rigid design, it  ensures the positioning accuracy and clamping stability of the parts.

Jig: Adopting a high-precision and highly rigid jig system, it  quickly and accurately clamps various shapes of parts, ensuring  stability and precision during the bending process.

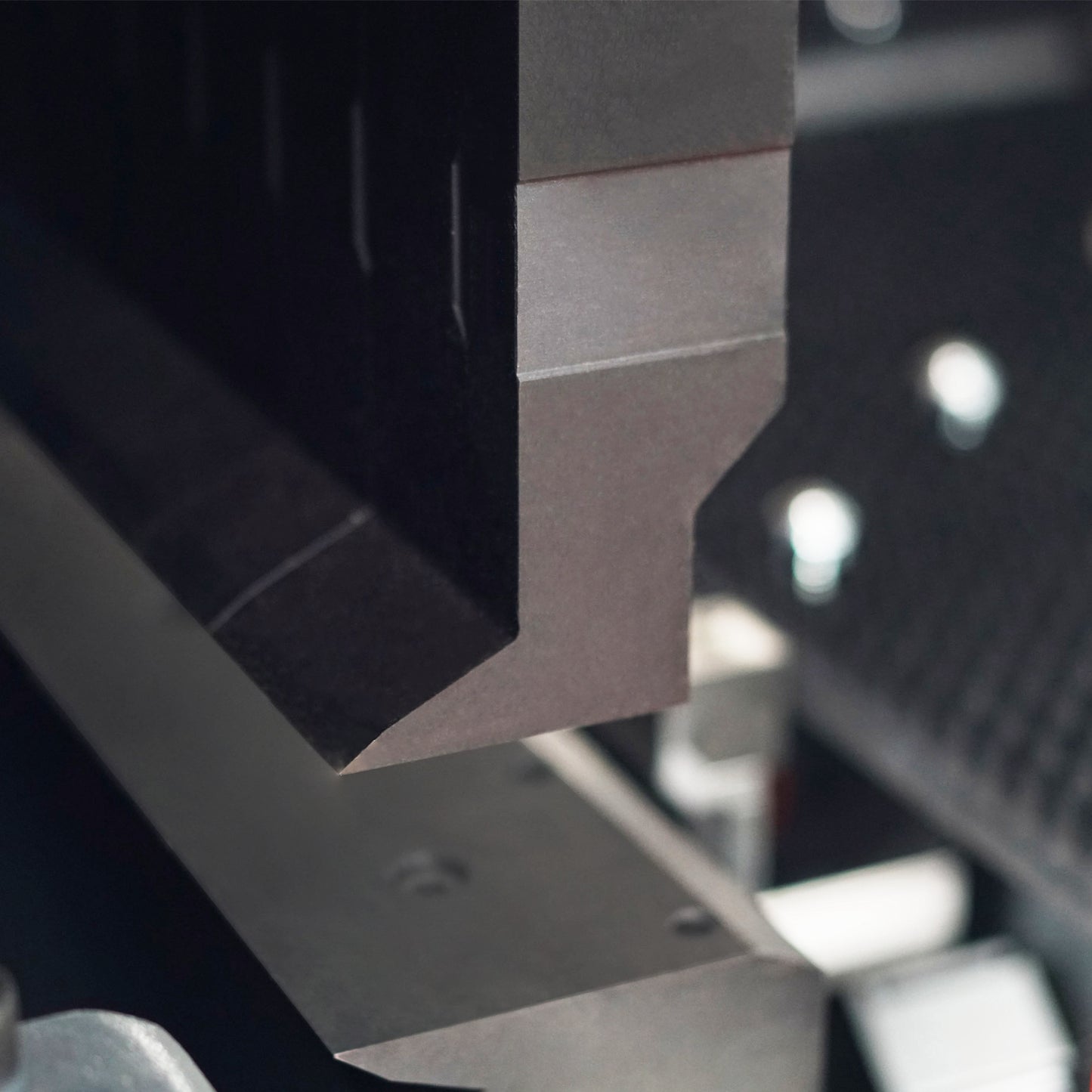

Bending unit: Composed of slider, bending cylinder, bending die, and  other components, it can perform bending operations at different angles  and sizes, and features high precision and efficiency.

Control system: Employing advanced numerical control technology, it  enables fully automated bending operations, including automatic loading  and unloading, precise positioning and clamping, and bending.

Sensors and controllers: Equipped with various sensors and  controllers, it realizes intelligent control and detection, including  position sensors, speed sensors, pressure sensors, along with  corresponding controllers and circuit boards.

The operational process of CNC Intelligent Flexible Bending Machine is as follows:

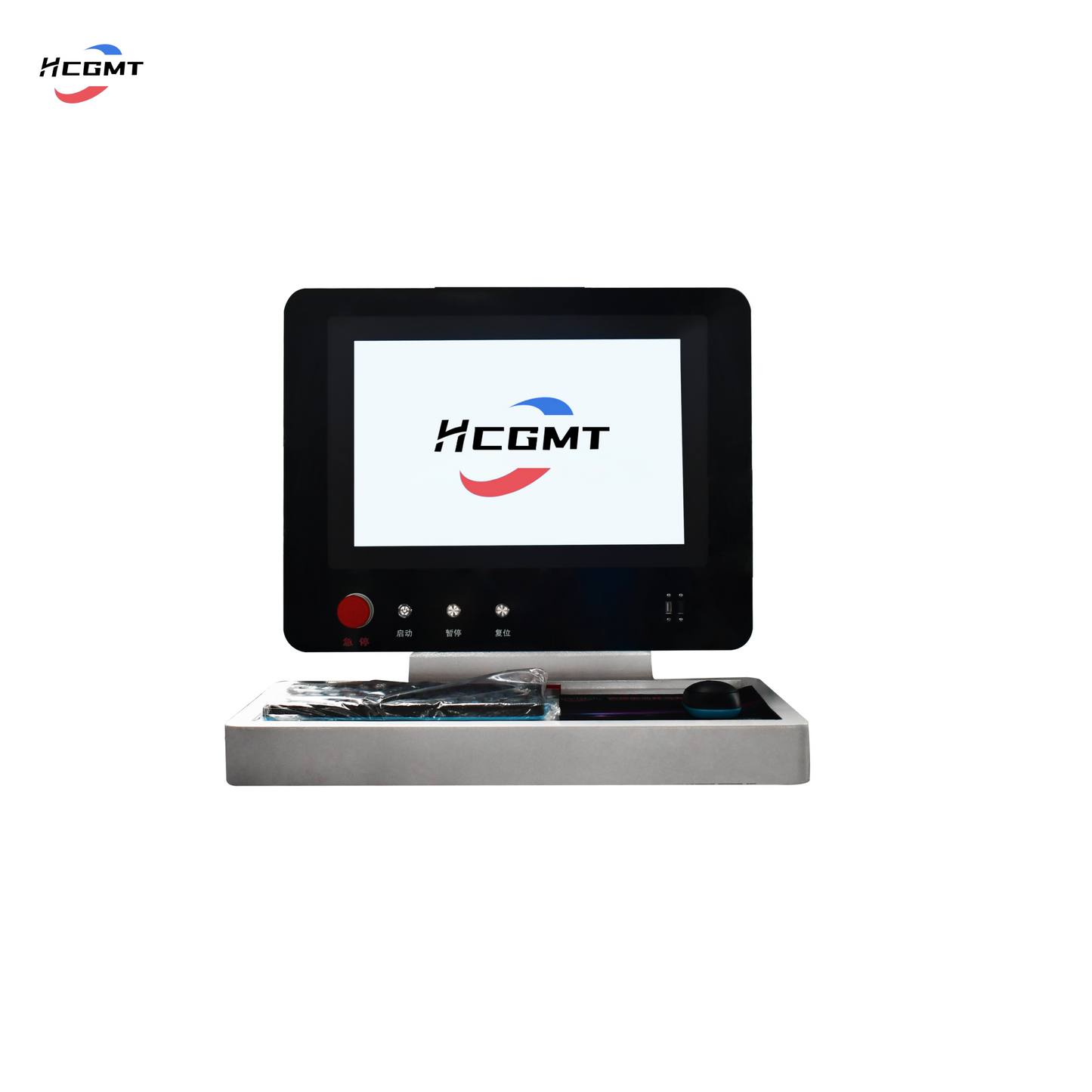

Preparation phase: The operator enters the dimensions and requirements of the bending components through a touch screen or computer, and places the parts on the clamping platform of the bending machine.

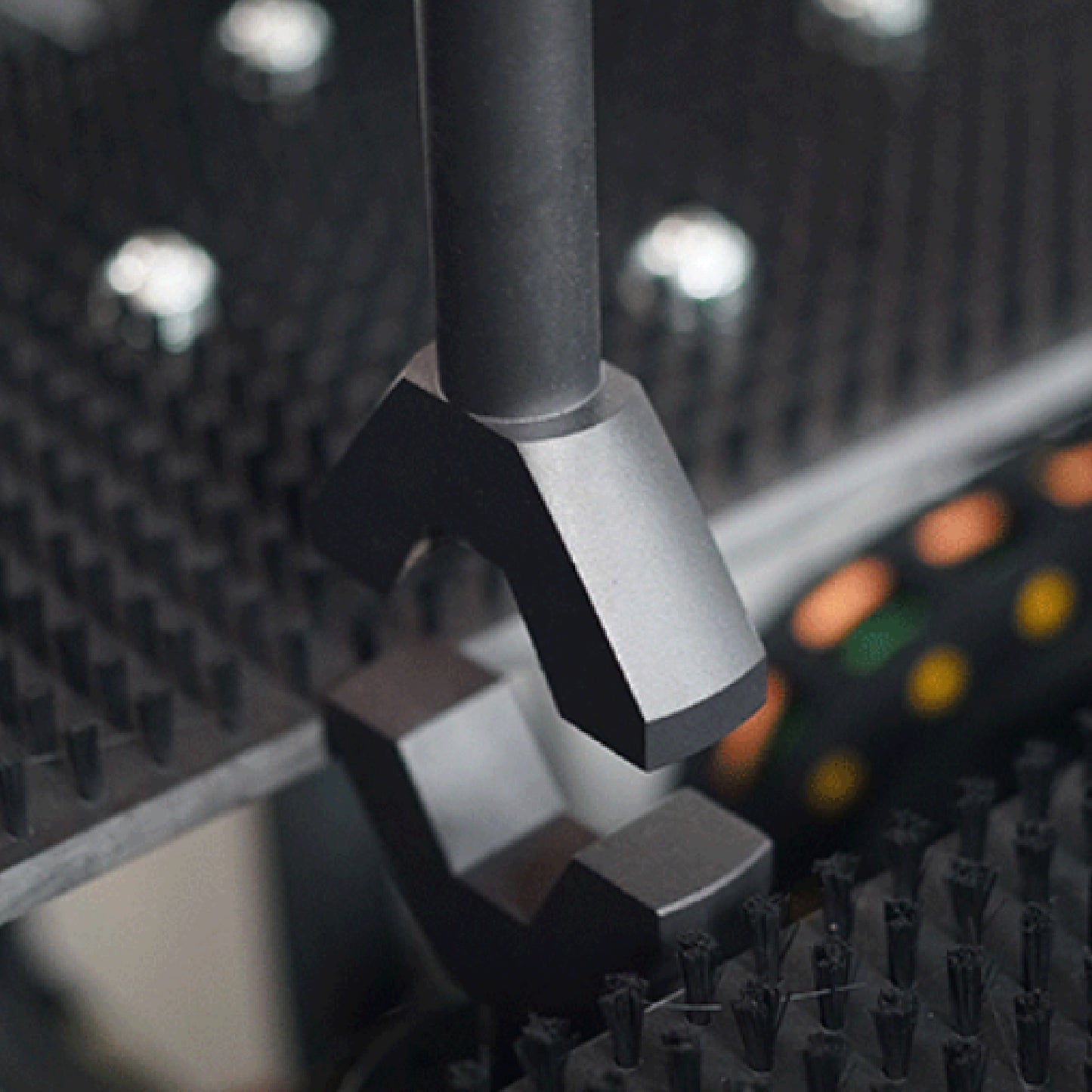

Automatic loading and unloading: CNC Intelligent Flexible Bending Equipment is equipped with an automated loading and unloading device, which can automatically grasp and position the parts to be bent onto the clamping platform of the bending machine through a mechanical arm and sensors.

Positioning and clamping: After the loading is completed, the bending machine automatically performs positioning and clamping operations through sensors and controllers to ensure the position and stability of the parts.

Bending operation: Once the positioning and clamping are complete, the bending machine commences the bending process. Based on the preset program and parameters, the bending machine automatically adjusts the bending angle, size, and speed to achieve high-precision bending processing.

Detection and Correction: After the bending operation is completed, CNC Intelligent Flexible Bending System uses sensors and controllers to examine the bending results and determine if they meet the requirements. If any errors are detected, they can be corrected through the correction program.

Automatic unloading: Finally, the bending machine automatically removes the bent parts from the clamping platform through the automatic loading and unloading device.

The working process of CNC Intelligent Flexible Metal Bending Center can fully automate the loading, bending, and unloading processes of components, improving production efficiency and processing quality while reducing operator labor intensity.
