JTM Intelligent Equipment Co., Ltd.

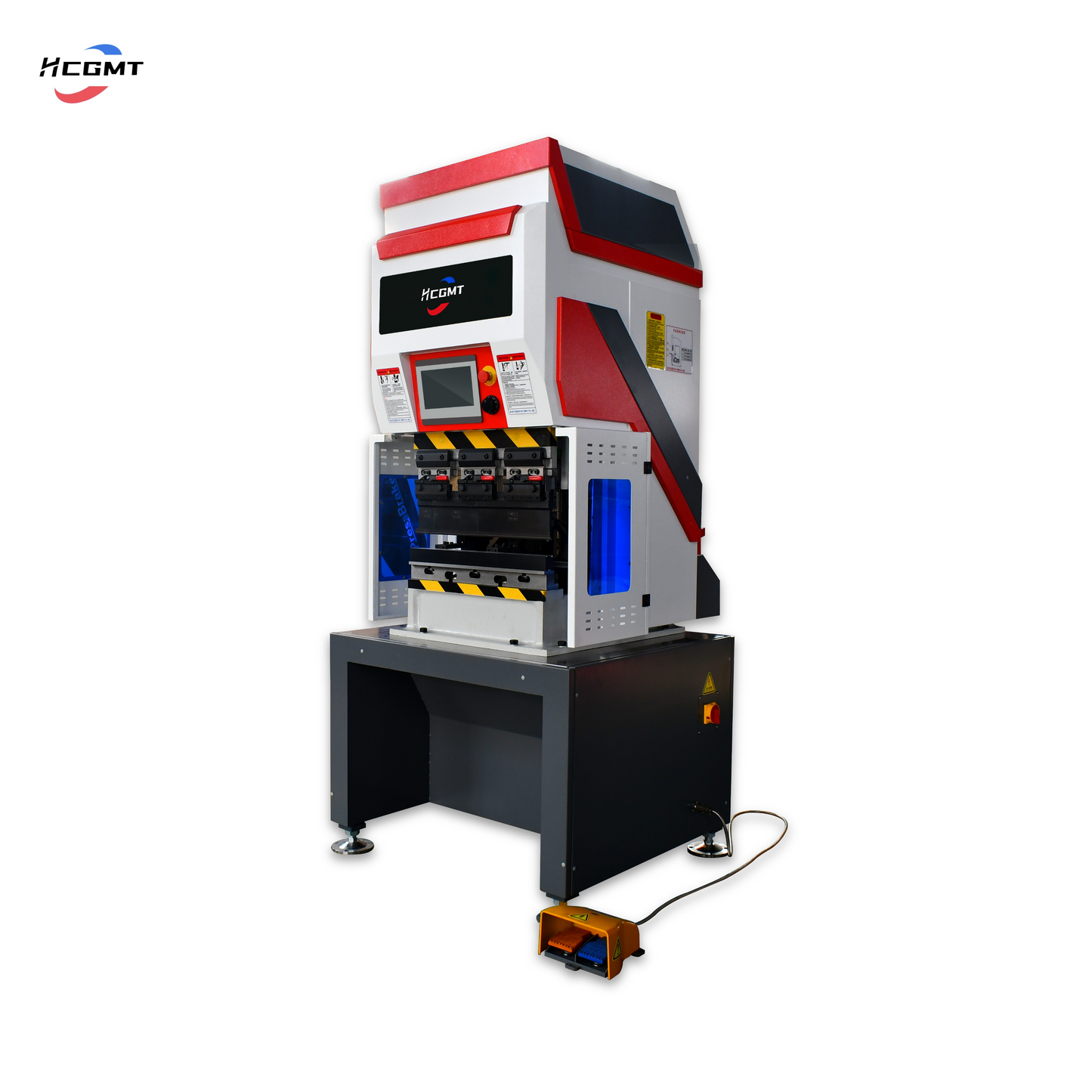

| JTM Electric One Axis Bending Machine Technical Parameters |
|
HC-8T/600
(One Axis) |
HC-15T/600
(One Axis) |
| Nominal Pressure |
80KN |
150KN |
| Workbench Length |
600MM |
600MM |
| Column Distance |
550MM |
620MM |
| Slider Stroke |
80MM |
80MM |
| Maximum Die Set Height |
330MM |
330MM |
| Maximum Throat Depth |
220MM |
220MM |
| Axes |
3(X,Y,R) |
4(Y1,Y2,X,R) |
| Slider Speed (No Load) |
Down |
220MM/S |
220MM/S |
| Work |
100MM/S |
100MM/S |
| Back |
150MM/S |
150MM/S |
| Slider Repositioning Accuracy |
0.01MM |
0.01MM |

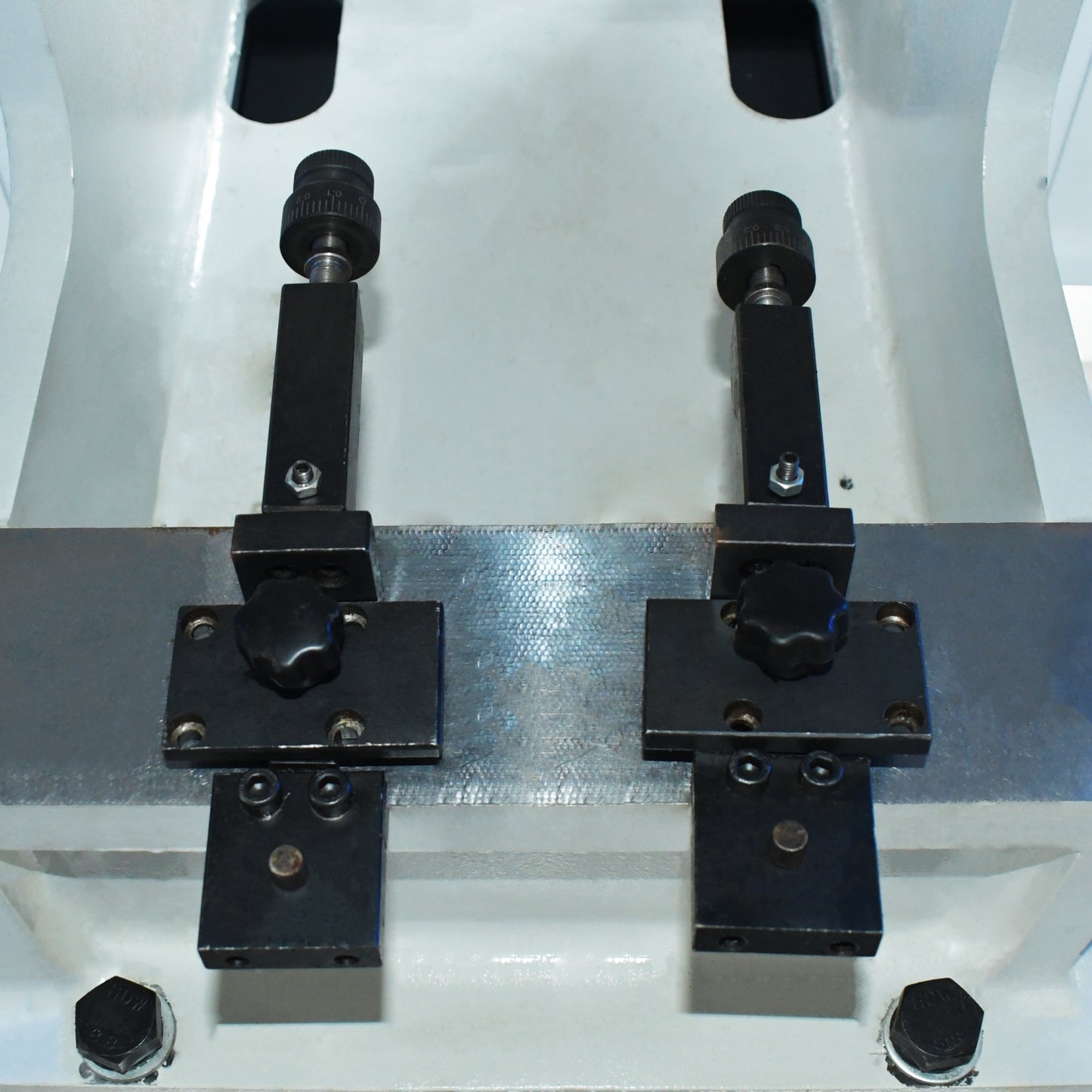

| Back Gauge X Axis |
Stroke Speed |
120MM |
120MM |
| Maximum Moving Speed |
300MM/S |
300MM/S |
| Repositioning Accuracy |
0.02MM |
0.02MM |
| Machine Dimension |
Length |
1000MM |
1150MM |
| Width |
1000MM |
1150MM |
| Height |
2200MM |
2200MM |
| Note: All parameters are dynamic and for reference only. For more information, please contact customer service. |
