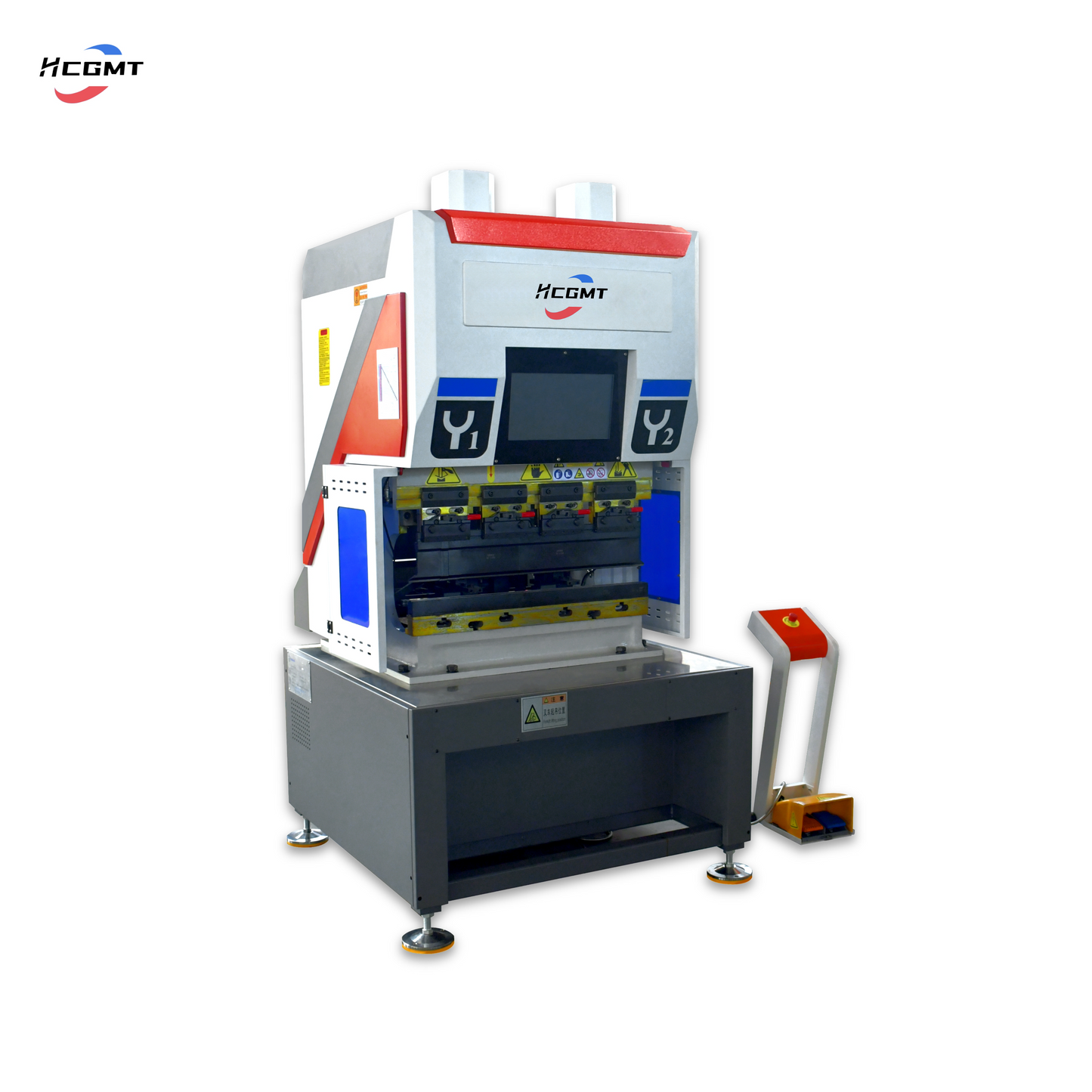

Hcgmt® Electric Two-axis Bending Machine

Hcgmt® Electric Two-axis Bending Machine

Nominal Pressure
Workbench Length
JTM Electric Two Axis Bending Machine Technical Parameters
HC-20T/800
(Two Axis)		 HC-25T/1200
(Two Axis)		 HC-30T/1200
(Two Axis)		 HC-30T/1600
(Two Axis)
Nominal Pressure 200KN 250KN 300KN 300KN
Workbench Length 800MM 1200MM 1200MM 1600MM
Column Distance 740MM 940MM 940MM 1340MM
Slider Stroke 80MM 90MM 90MM 90MM
Maximum Die Set Height 330MM 331MM 331MM 330MM
Maximum Throat Depth 220MM 280MM 280MM 280MM
Axes 4(Y1,Y2,X,R) 4(Y1,Y2,X,R) 4(Y1,Y2,X,R) 4(Y1,Y2,X,R)
Slider Speed (No Load) Down 220MM/S 220MM/S 220MM/S 220MM/S
Work 100MM/S 100MM/S 100MM/S 100MM/S
Back 150MM/S 150MM/S 150MM/S 150MM/S
Slider Repositioning Accuracy 0.01MM 0.01MM 0.01MM 0.01MM

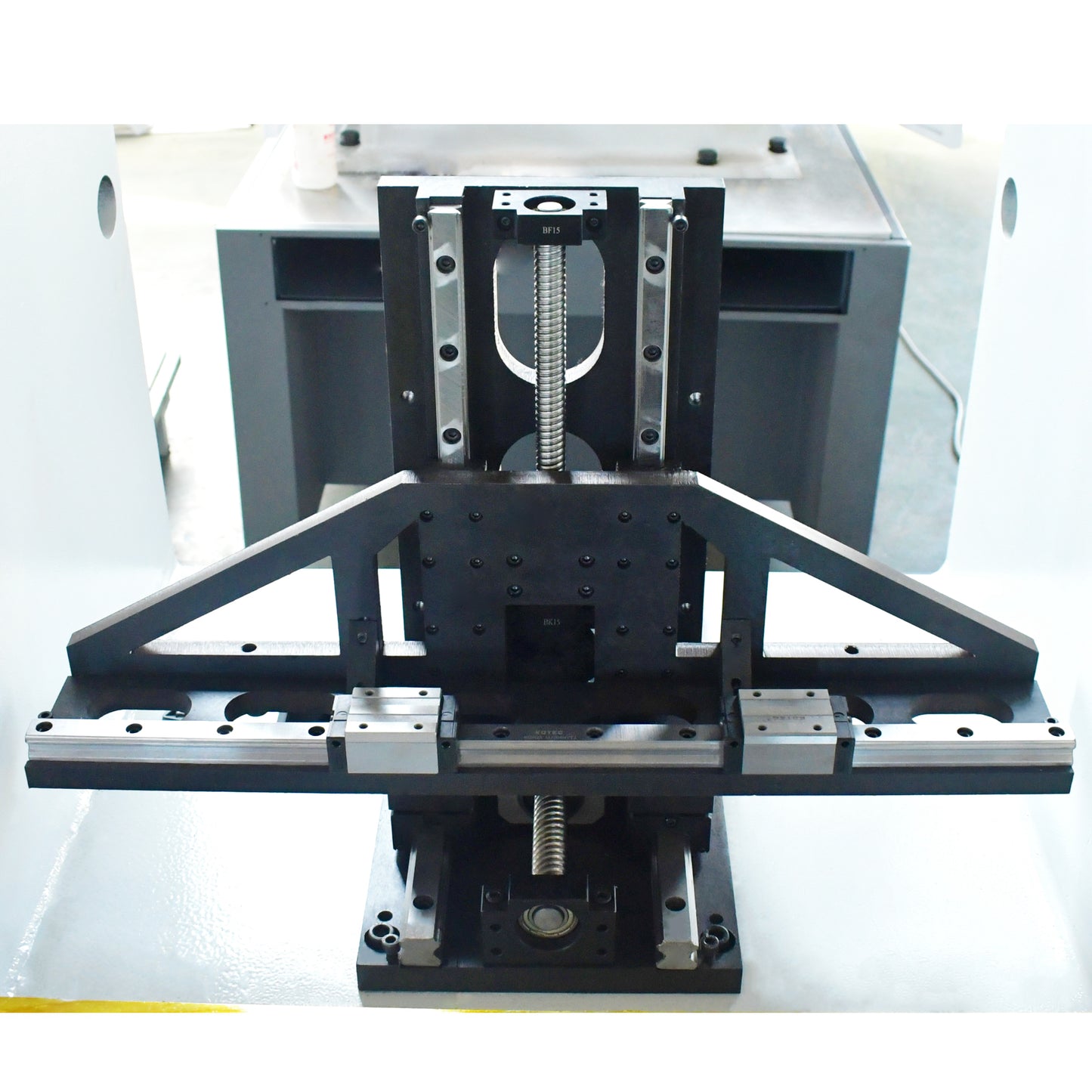

Back Gauge X Axis Stroke Speed 120MM 200MM 200MM 200MM
Maximum Moving Speed 300MM/S 300MM/S 300MM/S 300MM/S
Repositioning Accuracy 0.02MM 0.02MM 0.02MM 0.02MM
Machine Dimension Length 1150MM 1300MM 1300MM 1400MM
Width 1150MM 1300MM 1300MM 1700MM
Height 2200MM 2250MM 2250MM 2250MM
Note: All parameters are dynamic and for reference only. For more information, please contact customer service.
